Wooden roller shutters

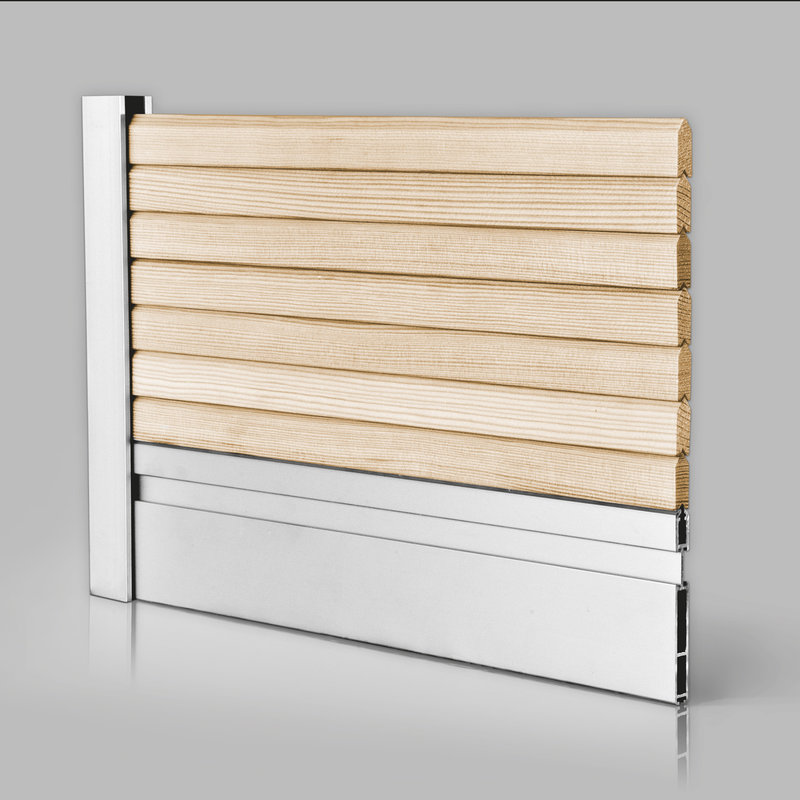

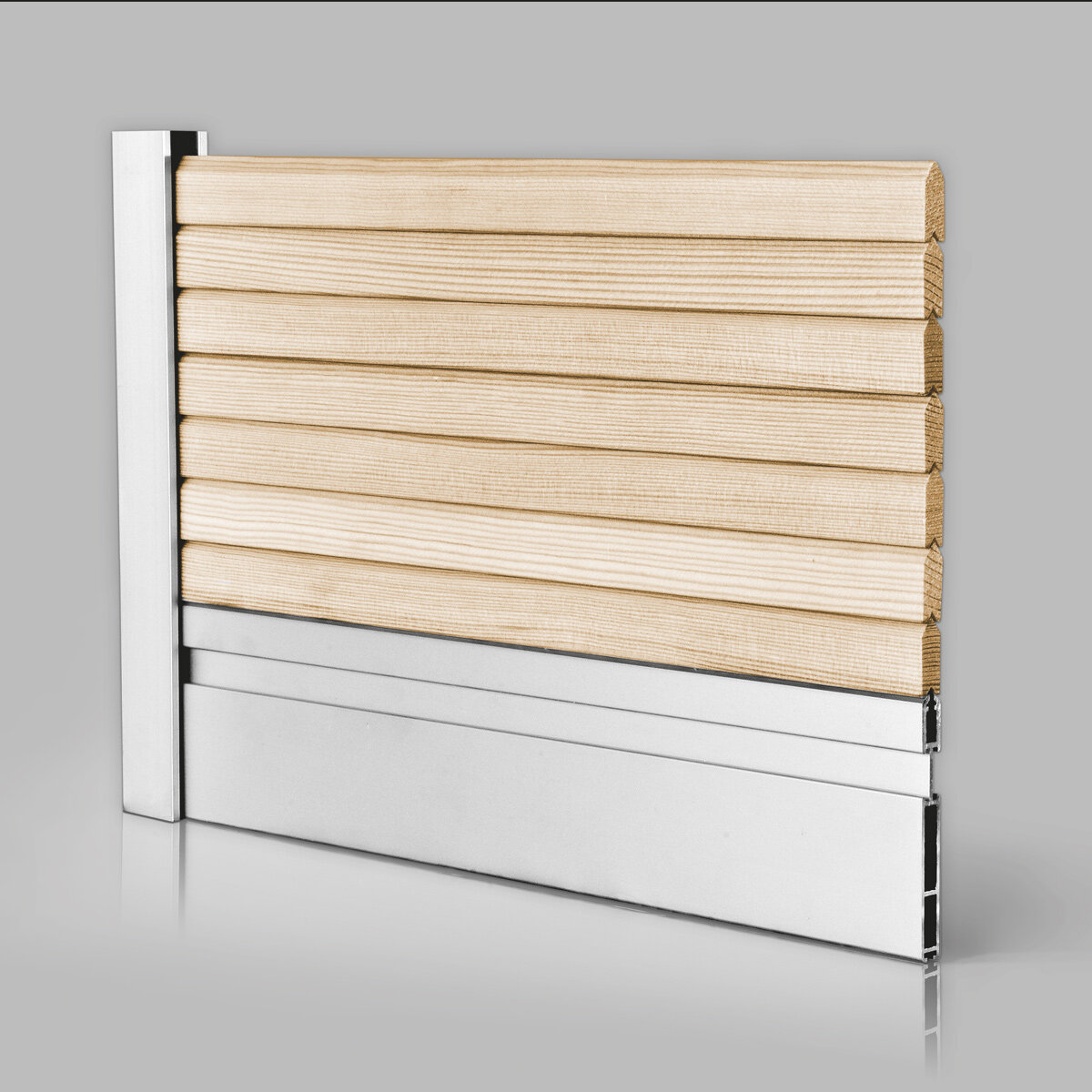

TRIGONA

Dovetail 9 x 24 mm

Wooden roller shutter in closely ringed, knot-free north pine/spruce, untreated woodwork. End rail in aluminium, stop bracket in aluminium. Complete chrome-steel pull-through strips, fixed with stainless clasps. Minimum size 1.5 m².

Untreated woodwork.
Upon request, we supply the roller shutters bath primed, varnished or lacquered.
Other types of wood upon request.

Quotation requirement

Do you have a specific project?
If so we'd be pleased to provide a quote for you.

Quote

Download Trigona

Specifications

Light transmission	Very good light control, slight irregularities due to technical requirements.
Max. width Max. height	350 cm 300 cm Larger dimensions on request and for an extra charge. A reinforcement bracket is required for widths of 300 cm.
Unrolling	Double-sided
Roll-up diameter	Length of shield 100 cm: 13 cm Length of shield 150 cm: 15 cm Length of shield 200 cm: 17 cm Length of shield 250 cm: 19 cm Length of shield 300 cm: 21 cm ( minimum inside box dimensions: width + 2 cm allowance, length + 4 cm allowance)
Drive variants	Belt Crank Motor (also with remote control) Spring shaft
Suitable guide up to 250 cm Suitable guide from 251 cm	22/29 mm anodised aluminium with brushes on both sides 22/40 mm anodised aluminium with brushes on both sides
Optional accessories	Standard stand-out section (up to 200 cm width) Lever-operated stand-out section (from 200 cm width) Locker
	This wooden shutter can be unrolled from either side.
