Wooden roller shutters

SILENCIA 24

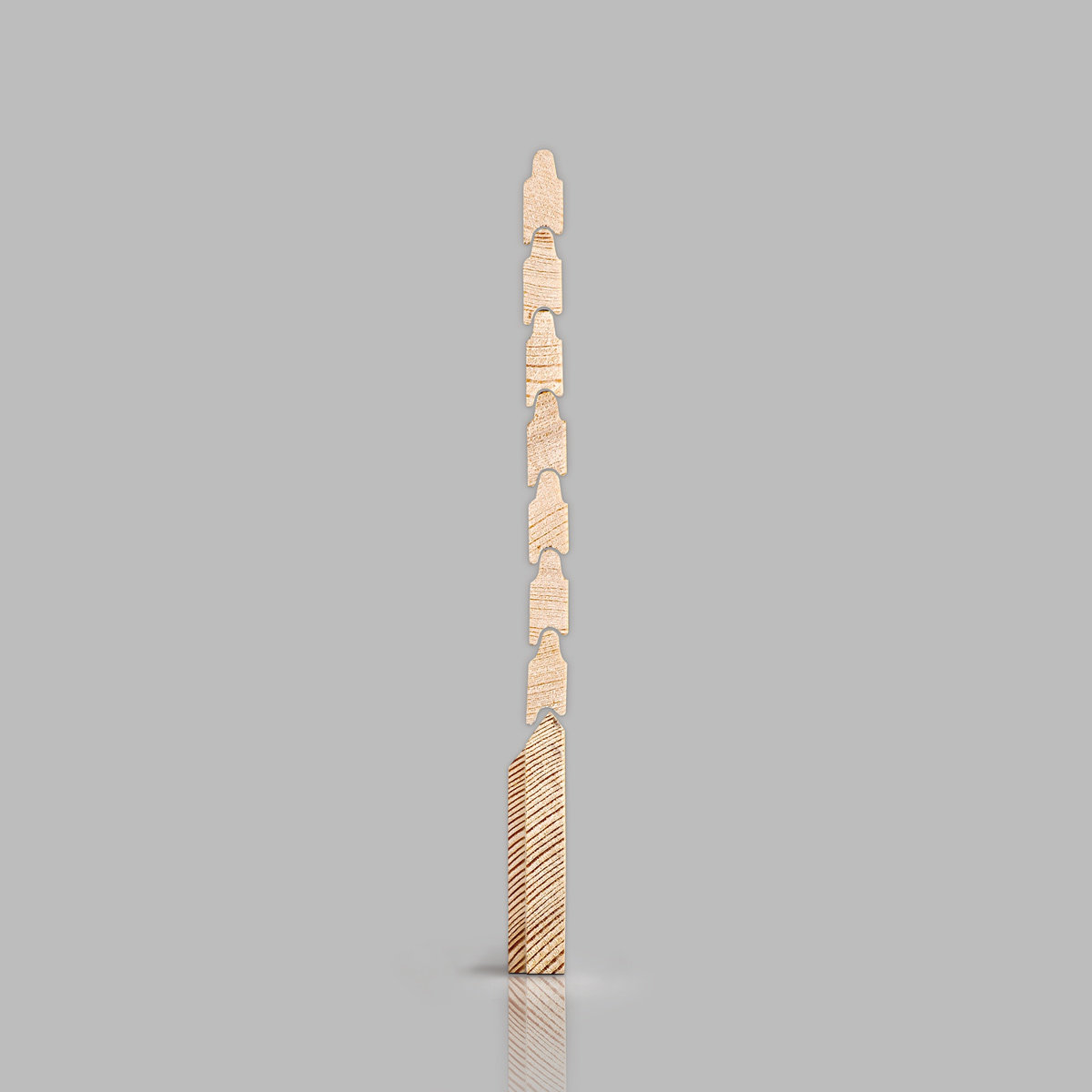

10 mm straight 10 x 24 mm

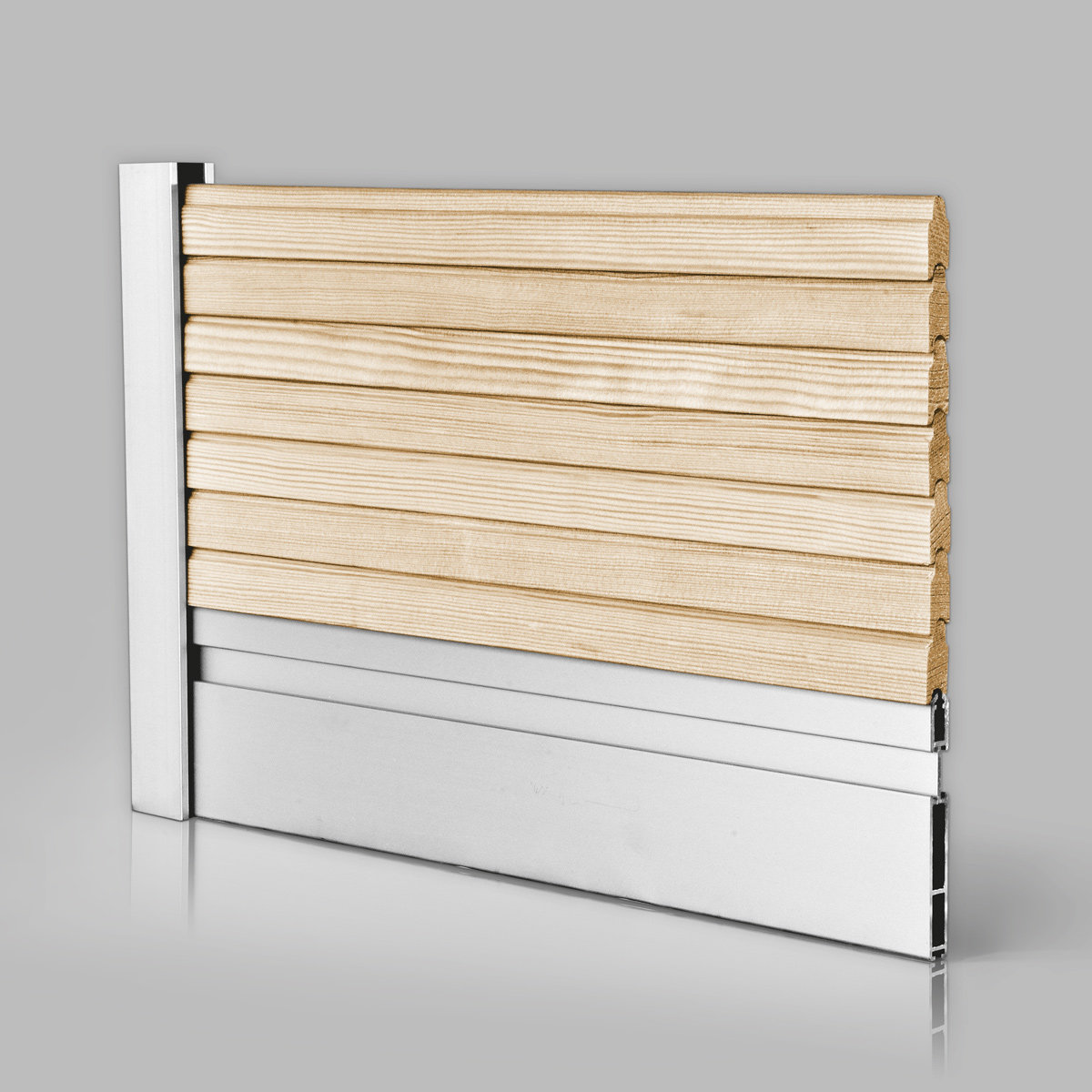

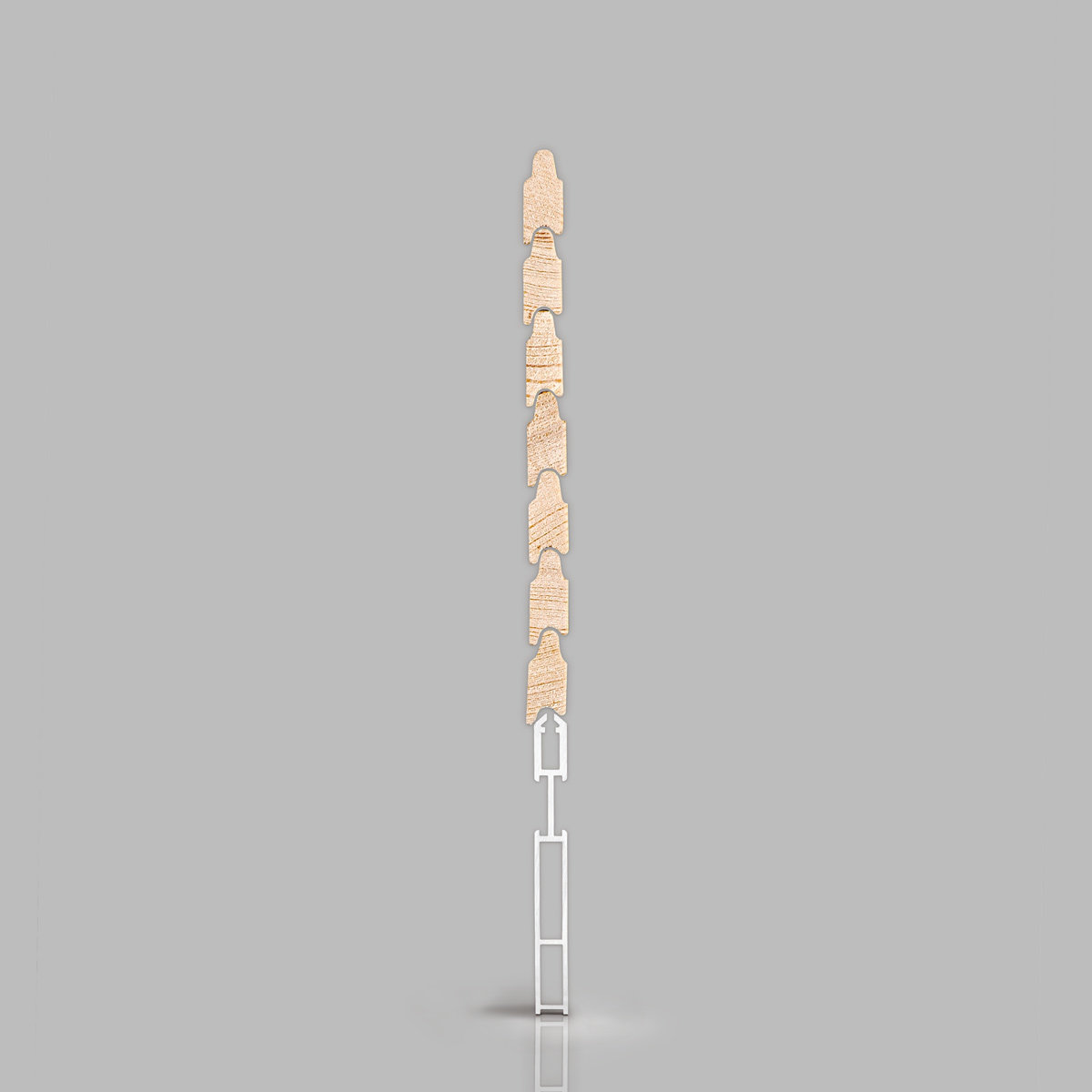

Wooden roller shutter in closely ringed, knot-free north pine/spruce, untreated woodwork. End rail in aluminium, stop bracket in aluminium. Complete chrome-steel pull-through strips, fixed with stainless clasps. Minimum size 1.5 m².

Untreated woodwork.
Upon request, we can supply the roller shutters primed, varnished or lacquered.
Other types of wood upon request.

Quotation requirement

Do you have a specific project?
If so we'd be pleased to provide a quote for you.

Quote

Download Silencia 24/33

Specifications

Light transmission	Very good light control.
Max. width Max. height	400–450 cm 300 cm Larger dimensions on request and for an extra charge. A reinforcement bracket is required for widths of 300 cm.
Unrolling	can only be unrolled on the outside
Roll-up diameter	Length of shield 100 cm: 14 cm/17 cm Length of shield 150 cm: 16 cm/18 cm Length of shield 200 cm: 18 cm/19 cm Length of shield 250 cm: 20 cm/21 cm Length of shield 300 cm: 22 cm/23 cm (minimum inside box dimensions: width + 2 cm allowance, length + 4 cm allowance)
Drive variants	Belt Crank Motor (also with remote control) Spring shaft
Suitable guide up to 250 cm Suitable guide from 251 cm	22/29 mm anodised aluminium with brushes on both sides 22/40 mm anodised aluminium with brushes on both sides
Optional accessories	Standard stand-out section (up to 200 cm width) Lever-operated stand-out section (from 200 cm width) Locker
	This wooden roller blind can only be unrolled on the outside (on request, can be unrolled on the inside for an extra charge).
