Wooden roller shutters

FERMATA

Prism 6 x 23 mm geschlossene Stäbe

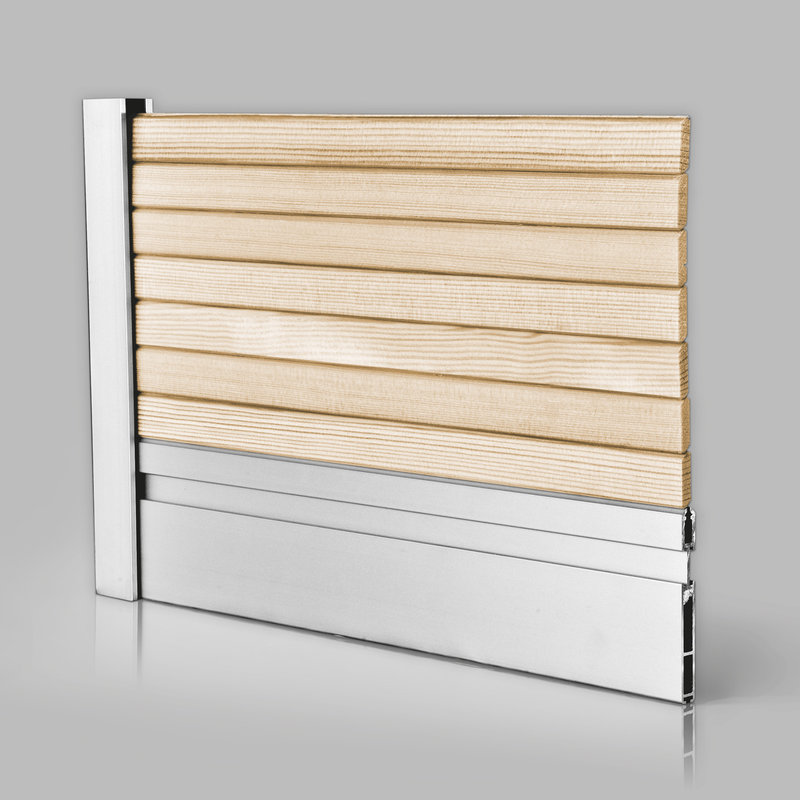

Wooden roller shutter in closely ringed, knot-free north pine/spruce, untreated woodwork. End rail in aluminium, stop bracket in aluminium. Complete chrome-steel pull-through strips, fixed with stainless clasps. Minimum size 1.5 m².

Untreated woodwork.
Upon request, we supply the roller shutters bath primed, varnished or lacquered. Other types of wood upon request.

Quotation requirement

Do you have a specific project?
If so we'd be pleased to provide a quote for you.

Quote

Download Fermata

Specifications

Light transmission	Darkened but not pitch-black; slight irregularities due to technical concerns
Max. width Max. height	200 cm 300 cm Larger sizes on request and for an extra charge widths over 200 cm not guaranteed. Over 201 cm we recommend the profile Trigona
Unrolling	Double-sided
Roll-up diameter	Length of shield 100 cm: 12 cm Length of shield 150 cm: 13 cm Length of shield 200 cm: 15 cm Length of shield 250 cm: 16 cm Length of shield 300 cm: 18 cm ( minimum inside box dimensions: width + 2 cm allowance, length + 4 cm allowance)
Drive variants	Belt Crank Motor (also with remote control) Spring shaft
Suitable guide up to 200 cm	19/28 mm anodised aluminium with brushes on both sides (standard) 19/40 mm anodised aluminium with brushes on both sides (optional)
Optional accessories	Normal stand-out section (standard) Lever stand-out section (optional) Locker (optional)
	This wooden shutter can be unrolled from either side.
